HXZG's range of Wotetrack Crawler Mobile Vibrating Screen is ideal for a wide range of applications such as screening, grading and sizing to meet the requirements of contractors, mines and quarries.
These mobile vibrating screens are heavy-duty machines that are supplied complete and ready to use. The screens combine high capacity with a precise end product. Customers can choose to equip the vibrating screens with various specifications according to different needs. The vibrating screens are mounted on a skid and do not require a concrete foundation, making them quick to install and easy to integrate with our other product ranges.
The material is fed by a feeder, wheel loader or conveyor. The feeder lifts the material to the double-layer screen, which then separates the material to the oversize and side conveyors. With the bidirectional split option, the top and bottom layers of material can be combined to the oversize conveyor (removing fines).
A wide range of screens for a variety of needs.
Adjustable stroke and screen angle to improve material processing.
Designed for multi-stage crushing processes to separate materials of different sizes.
The mobile machine can be moved and transferred to the source or quarry location.
Minimal maintenance is required, thus reducing downtime and associated costs.
Feeding pre-screening system
New type of crushing host
Side belt conveyor
Technical Specifications

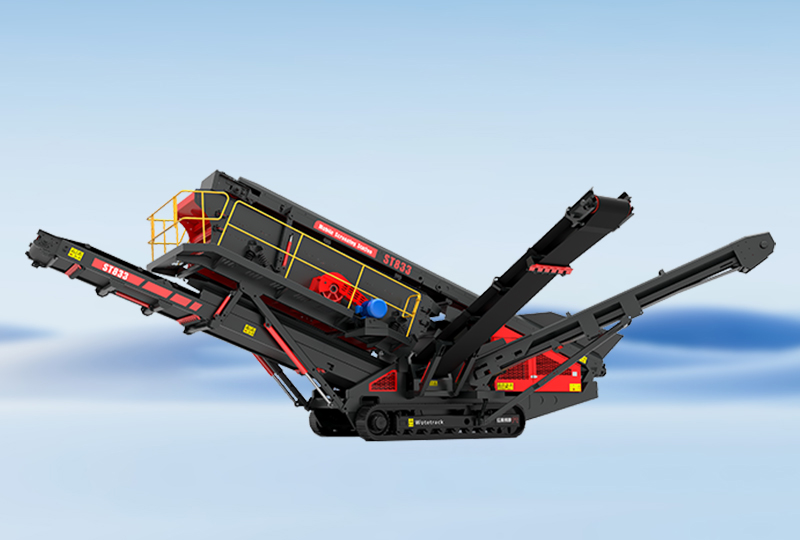

Wotetrack Crawler Mobile Vibrating Screen

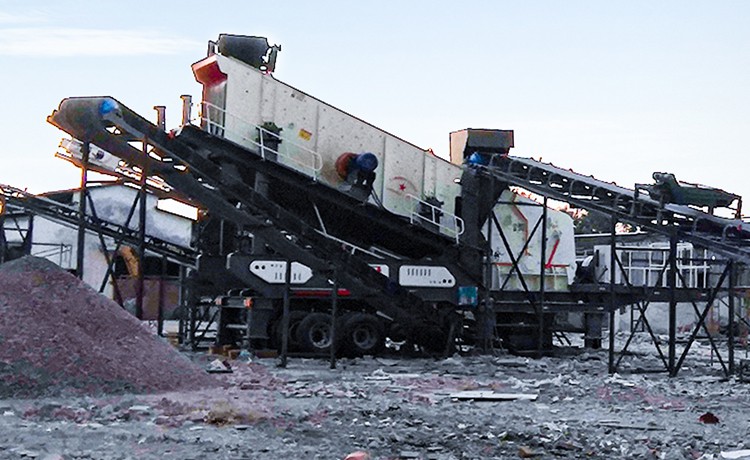

Wheel Type Mobile Vibrating Screen
Model ST673 and ST993
| Model | ST673 | ST993 | |
| Dimensions of Transmission Devices | Length | 11000mm | 12500mm |
| Width | 3800mm | 4000mm | |
| Height | 3800mm | 3900mm | |
| Weight | 28t | 33t | |
| Feeding Belt Conveyor | Dimensions(Width×Length) | 1000×10000mm | 1000×13000mm |
| Loading Height | 2560mm | 2680mm | |
| Vibrating Screen | Model | 3HX1545 | 3HX2160 |
| Sieving Layers | 3 | 3 | |
| Belt Conveyor | Dimensions(Width×Length) | 1000×7400mm | 1000×7500mm |
| Discharging Height | 3380mm | 3460mm | |
| Belt Conveyor for Coarse Material | Dimensions(Width×Length) | 500×5600mm | 650×5800mm |
| Discharging Height | 3430mm | 3570mm | |
| Belt Conveyor for Medium-Sized Material | Dimensions(Width×Length) | 500×5300mm | 650×5400mm |
| Discharging Height | 3150mm | 3250mm | |
| Belt Conveyor for Fine Material | Dimensions(Width×Length) | 500×5600mm | 650×5800mm |
| Discharging Height | 3030mm | 3080mm | |
| Transferring Belt Conveyors | Dimensions(Width×Length) | 500×2000mm | 650×2000mm |
| Discharging Height | 2130mm | 2130mm | |
| Diesel Engine | Power | 75kw | 96kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 54kw | 65.5kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model ST1303
| Model | ST1303 | |
| Dimensions of Transmission Devices | Length | 12500mm |
| Width | 4000mm | |
| Height | 3900mm | |
| Weight | 38t | |
| Feeding Belt Conveyor | Dimensions(Width×Length) | 1000×13000mm |
| Loading Height | 2700mm | |
| Vibrating Screen | Model | 3HX2160 |
| Sieving Layers | 3 | |
| Belt Conveyor | Dimensions(Width×Length) | 1000×7500mm |
| Discharging Height | 3460mm | |
| Belt Conveyor for Coarse Material | Dimensions(Width×Length) | 650×5800mm |
| Discharging Height | 3570mm | |
| Belt Conveyor for Medium-Sized Material | Dimensions(Width×Length) | 650×5400mm |
| Discharging Height | 3250mm | |
| Belt Conveyor for Fine Material | Dimensions(Width×Length) | 650×5800mm |
| Discharging Height | 3080mm | |
| Transferring Belt Conveyors | Dimensions(Width×Length) | 650×2000mm |
| Discharging Height | 2130mm | |
| Diesel Engine | Power | 96kw |
| Manufacturer | Carter Perkins | |
| The Main Machine | Power | 65.5kw |
| Ways of Controlling | Wired/Wireless (optional) | |
| Model | H3S1848 | H3S1860 | HX3S2160 |
| Transportation length(mm) | 10280 | 11480 | 11480 |
| Transportation Width(mm) | 2830 | 2830 | 3150 |
| Transportation Height(mm) | 4350 | 4350 | 4350 |
| Maximum Length(mm) | 11100 | 11800 | 11800 |
| Maximum Width(mm) | 3600 | 3600 | 3970 |
| Maximum Height(mm) | 6000 | 6000 | 6500 |
| Weight(t) | 16 | 18 | 19 |
| Tire Configuration | Dualaxial | Dualaxial | Dualaxial |
| Vibrating Screen | 3YZS1848 | 3YZS1860 | 3YZS2160 |
