MP Series Modular Factory-HXZG

MP Series Modular Factory

MP module factory is a new all-around solution for aggregate crushing and screening developed by Hongxing Group according to the current domestic and overseas market environment. It is the latest international design concept. No matter your raw materials, site conditions, finished product requirements or production cycle, the design concept of MP factory combined with the high quality main machine of Hongxing Group can meet your budget and specific requirements.

request a quote e-mail

Advantages

Short construction period

All modular steel structures are produced in the factory, and the production is fast. Only a small amount of concrete foundation is needed on site, which shortens the construction period and realizes rapid production;
Low investment cost

All structures are fabricated in the factory, and only on-site installation is required, saving the cost of personnel organization and leftover waste material for on-site fabrication;
Convenience and flexibility

The module structure basically adopts the bolting mode, which is convenient for on-site assembly and greatly shortens the construction period. This structure is also easy to be loaded into containers for transportation and reduces freight expense.

Completely new design of HXZG

Jaw Crusher

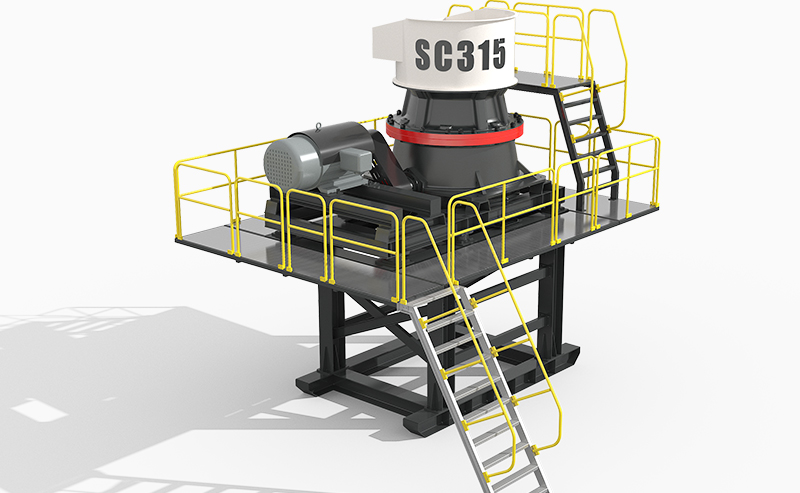

Cone Crusher

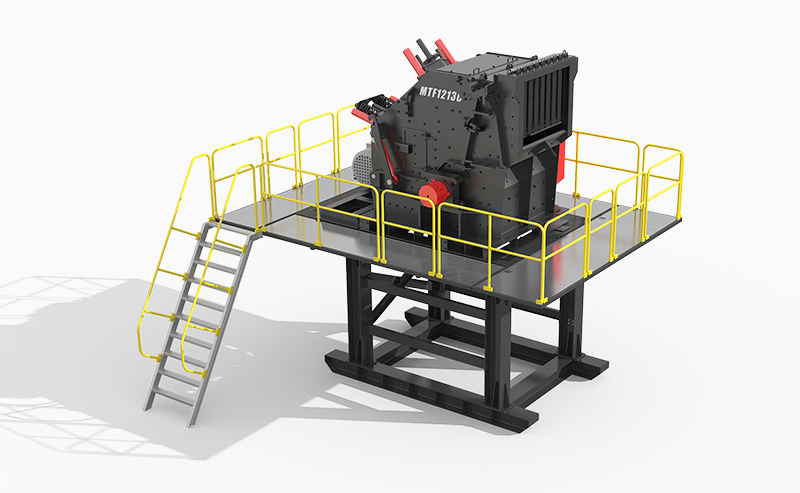

Impact Crusher
Sand Maker

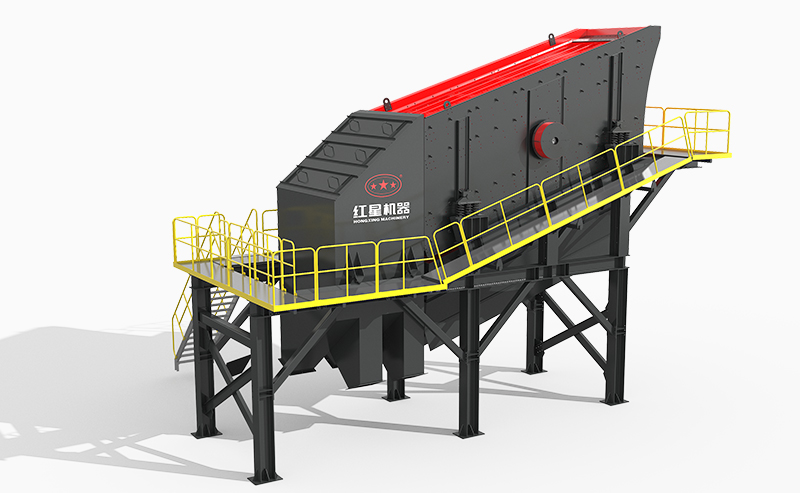

Vibrating Screen

Technical Specifications

Production line code		Maximum Feed Size (mm)	Capacity (t/h)			Main Configuration			Total Power (kw)	Floor space (m)	Note
Production line code		Maximum Feed Size (mm)	0-5mm	0-20mm	0-32mm	Primary Crushing	Secondary/tertiary Crushing	Screening	Total Power (kw)	Floor space (m)	Note
Hard rock	MPH1	500	/	120	150	MU-HDX86	MU-SC160	MU-HX2165	373	45×45
			/	130	160	MU-HDX86	MU-SC160 MU-HVI0926	MU-HX1545 MU-HX2165	717	50×70	plastic
			100	/	/	MU-HDX86	MU-SC160 MU-VSIA7500	MU-HX1855 MU-HX2465	859	50×70	Sand making
	MPH2	500	/	180	220	MU-CJ96	MU-SC250	MU-HX2465	490	50×50
			/	190	230	MU-CJ96	MU-SC250 MU-VSIA7400	MU-HX2165 MU-HX2465	963	50×70	plastic
			200	/	/	MU-CJ96	MU-SC250 MU-VSIA7800	MU-HX2165 MU-HX3075	1367	50×70	Sand making
	MPH3	600	/	230	350	MU-CJ106	MU-SC315	MU-HX2765	603	60×60
	MPH3	600	/	240	360	MU-CJ106	MU-SC315 MU-VSIA7630	MU-HX2165 MU-HX3065	1260	60×70	plastic
	MPH5	700	/	400	520	MU-CJ120	MU-SC315S 2xMU-SC250	MU-HX2465 2×MU-HX2165	1290	70×80
Medium hard Soft rock	MPM1	500	/	120	160	MU-HDX86	MU-CI1110	MU-HX1855	363	45×45
	MPM2	500	/	160	210	MU-CJ96	MU-CI1213	MU-HX2165	449	50×50
	MPM3	600	/	210	300	MU-CJ106	MU-CI1316	MU-HX2465	535	60×60
	MPM4	700	/	320	400	MU-CJ120	MU-CI1521	MU-HX3085	750	60×70

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Production line code		Maximum Feed Size (mm)	Capacity (t/h)
Production line code		Maximum Feed Size (mm)	0-5mm	0-20mm	0-32mm
Hard rock	MPH1	500	/	120	150
			/	130	160
			100	/	/
	MPH2	500	/	180	220
			/	190	230
			200	/	/
	MPH3	600	/	230	350
	MPH3	600	/	240	360
	MPH5	700	/	400	520
Medium hard Soft rock	MPM1	500	/	120	160
	MPM2	500	/	160	210
	MPM3	600	/	210	300
	MPM4	700	/	320	400

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
