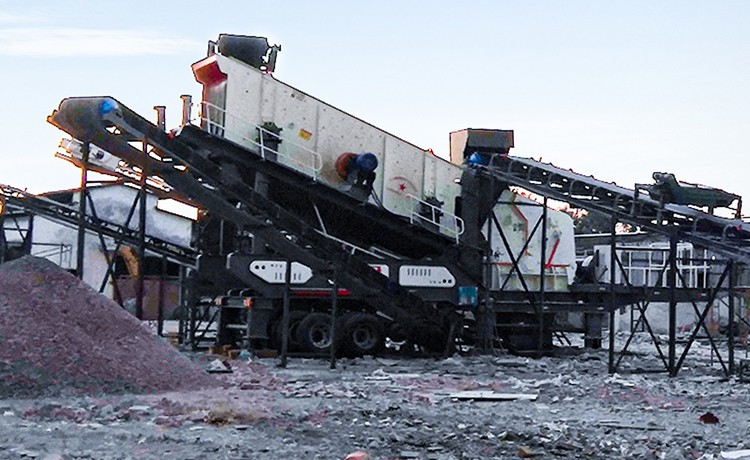

Wheel Type Mobile Vibrating Screen

HXZG's range of Wheel Type Mobile Vibrating Screen is ideal for a wide range of applications such as screening, grading and sizing to meet the requirements of contractors, mines and quarries.

These mobile vibrating screens are heavy-duty machines that are supplied complete and ready to use. The screens combine high capacity with a precise end product. Customers can choose to equip the vibrating screens with various specifications according to different needs. The vibrating screens are mounted on a skid and do not require a concrete foundation, making them quick to install and easy to integrate with our other product ranges.

request a quote e-mail

Working principle

The material is fed by a feeder, wheel loader or conveyor. The feeder lifts the material to the double-layer screen, which then separates the material to the oversize and side conveyors. With the bidirectional split option, the top and bottom layers of material can be combined to the oversize conveyor (removing fines).

Advantages

  • A wide range of screens for a variety of needs.

  • Adjustable stroke and screen angle to improve material processing.

  • Designed for multi-stage crushing processes to separate materials of different sizes.

  • The mobile machine can be moved and transferred to the source or quarry location.

  • Minimal maintenance is required, thus reducing downtime and associated costs.

Completely new design of HXZG

  •
	  Feeding pre-screening system

    Feeding pre-screening system

  •
	  New type of crushing host

    New type of crushing host

  •
	  Side belt conveyor

    Side belt conveyor

Technical Specifications

Wotetrack Crawler Mobile Vibrating Screen

Wheel Type Mobile Vibrating Screen

Model ST673 ST993 ST1303
Dimensions of Transmission Devices Length 11000mm 12500mm 12500mm
Width 3800mm 4000mm 4000mm
Height 3800mm 3900mm 3900mm
Weight 28t 33t 38t
Feeding Belt Conveyor Dimensions(Width×Length) 1000×10000mm 1000×10000mm 1000×13000mm
Loading Height 2560mm 2680mm 2700mm
Vibrating Screen Model 3HX1545 3HX1855 3HX2160
Sieving Layers 3 3 3
Belt Conveyor Dimensions(Width×Length) 1000×7400mm 1000×7500mm 1000×7500mm
Discharging Height 3380mm 3460mm 3460mm
Belt Conveyor for Coarse Material Dimensions(Width×Length) 500×5600mm 650×5800mm 650×5800mm
Discharging Height 3430mm 3570mm 3570mm
Belt Conveyor for Medium-Sized Material Dimensions(Width×Length) 500×5300mm 650×5400mm 650×5400mm
Discharging Height 3150mm 3250mm 3250mm
Belt Conveyor for Fine Material Dimensions(Width×Length) 500×5600mm 650×5800mm 650×5800mm
Discharging Height 3030mm 3080mm 3080mm
Transferring Belt Conveyors Dimensions(Width×Length) 500×2000mm 650×2000mm 650×2000mm
Discharging Height 2130mm 2130mm 2130mm
Diesel Engine Power 75kw 75kw 96kw
Manufacturer Carter Perkins Carter Perkins Carter Perkins
The Main Machine Power 54kw 57.5kw 65.5kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional)

Model ST673 and ST993

Model ST673 ST993
Dimensions of Transmission Devices Length 11000mm 12500mm
Width 3800mm 4000mm
Height 3800mm 3900mm
Weight 28t 33t
Feeding Belt Conveyor Dimensions(Width×Length) 1000×10000mm 1000×13000mm
Loading Height 2560mm 2680mm
Vibrating Screen Model 3HX1545 3HX2160
Sieving Layers 3 3
Belt Conveyor Dimensions(Width×Length) 1000×7400mm 1000×7500mm
Discharging Height 3380mm 3460mm
Belt Conveyor for Coarse Material Dimensions(Width×Length) 500×5600mm 650×5800mm
Discharging Height 3430mm 3570mm
Belt Conveyor for Medium-Sized Material Dimensions(Width×Length) 500×5300mm 650×5400mm
Discharging Height 3150mm 3250mm
Belt Conveyor for Fine Material Dimensions(Width×Length) 500×5600mm 650×5800mm
Discharging Height 3030mm 3080mm
Transferring Belt Conveyors Dimensions(Width×Length) 500×2000mm 650×2000mm
Discharging Height 2130mm 2130mm
Diesel Engine Power 75kw 96kw
Manufacturer Carter Perkins Carter Perkins
The Main Machine Power 54kw 65.5kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional)

Model ST1303

Model ST1303
Dimensions of Transmission Devices Length 12500mm
Width 4000mm
Height 3900mm
Weight 38t
Feeding Belt Conveyor Dimensions(Width×Length) 1000×13000mm
Loading Height 2700mm
Vibrating Screen Model 3HX2160
Sieving Layers 3
Belt Conveyor Dimensions(Width×Length) 1000×7500mm
Discharging Height 3460mm
Belt Conveyor for Coarse Material Dimensions(Width×Length) 650×5800mm
Discharging Height 3570mm
Belt Conveyor for Medium-Sized Material Dimensions(Width×Length) 650×5400mm
Discharging Height 3250mm
Belt Conveyor for Fine Material Dimensions(Width×Length) 650×5800mm
Discharging Height 3080mm
Transferring Belt Conveyors Dimensions(Width×Length) 650×2000mm
Discharging Height 2130mm
Diesel Engine Power 96kw
Manufacturer Carter Perkins
The Main Machine Power 65.5kw
Ways of Controlling Wired/Wireless (optional)
Model H3S1848 H3S1860 HX3S2160
Transportation length(mm) 10280 11480 11480
Transportation Width(mm) 2830 2830 3150
Transportation Height(mm) 4350 4350 4350
Maximum Length(mm) 11100 11800 11800
Maximum Width(mm) 3600 3600 3970
Maximum Height(mm) 6000 6000 6500
Weight(t) 16 18 19
Tire Configuration Dualaxial Dualaxial Dualaxial
Vibrating Screen 3YZS1848 3YZS1860 3YZS2160
Model H3S1848 H3S1860 HX3S2160
Transportation length(mm) 10280 11480 11480
Transportation Width(mm) 2830 2830 3150
Transportation Height(mm) 4350 4350 4350
Maximum Length(mm) 11100 11800 11800
Maximum Width(mm) 3600 3600 3970
Maximum Height(mm) 6000 6000 6500
Weight(t) 16 18 19
Tire Configuration Dualaxial Dualaxial Dualaxial
Vibrating Screen 3YZS1848 3YZS1860 3YZS2160
